Observatory build Chapter 4 of 10

Framing

Skirtboard on posts, joists in hangers with no ledger, and blocking that has to follow a circle rather than a grid.

7 min read

Read this

This is one person’s build, not engineering guidance. Local codes, soils and loads vary.

On this page

The structural scheme comes from NexDome's own sample deck drawing: a perimeter skirtboard bolted to posts, joists hung inside it, and 2×4 decking. I adapted two things.

What I changed from NexDome's drawing

Their sheet specifies joist spacing of 24″ o.c. over a 93¾″ span. My deck spans 117″, where 2×8 at 24″ o.c. no longer passes, so I went to 16″ o.c. Do not carry their 24″ figure across to a longer span. The rest of that sheet transfers.

Their detail uses a 2×4 ledger carrying the joist hangers. I fastened the hangers directly to the inside face of the rim instead. That works fine for a 2×8 hanger, and it removes a piece of framing that would otherwise have sat about ¼″ above the soil.

The members

I planned the skirtboard as 2×10 PT on all four sides, top edge at +10¾″, bolted to each post with two ⅜″ × 6″ hot-dip galvanized carriage bolts. As built it is 2×8, the same depth as the joists.

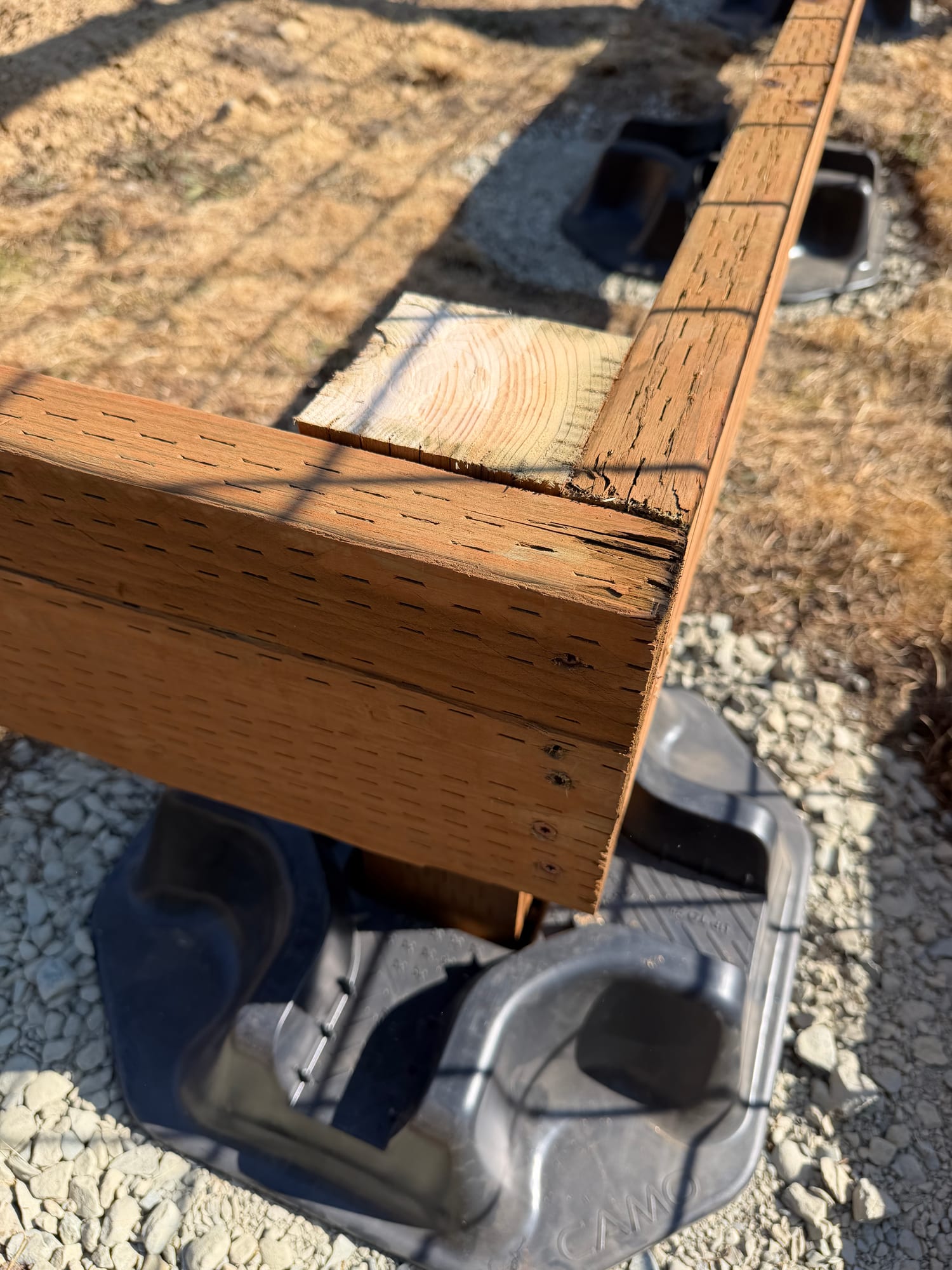

A corner where two pressure-treated boards meet, above a black plastic CAMO deck block set in crushed gravel.
A corner of the skirtboard on its post, the post seated in a CAMO block on a gravel pad.
Deck edge section as built Section through the front deck edge as built. A CAMO block carries a 4x4 post, which carries a 2x8 rim, the same depth as the 2x8 joists; the plan was a 2x10. There is no separate fascia skirt: the front face is wrapped with one decking board, whose exact position was not recorded. The decking runs over the top. The other sides show the rim, open below. Deck edge, as built grade 5/4 deckinggaps set with a square as the gauge Front wrap: one deck boardfront face only; no separate fascia 2x8 rim (planned 2x10)height above grade not recorded 2x8 joist CAMO block + 4x4 post Wrap position not recorded · other sides show the rim, open below

What the 2×8 rim changes

The planned 2×10 filled the whole height from the block tops (+1½″) to the joist tops (+10¾″): 9¼″, exactly a 2×10's actual depth. A 2×8 is 7¼″, so something gave by 2″. Either the deck sits about 2″ lower than designed, or the rim's bottom edge sits about 2″ above the blocks on longer posts. I did not record which.

The joists and hangers are unchanged: 2×8 joists in 2×8 face-mount hangers on the rim's inside face, now flush with the rim at top and bottom. There are still two ⅜″ × 6″ carriage bolts per post; the bolt passes through rim and post, so its length does not depend on the rim's depth. I did not record where the two sit on the narrower face, or the post lengths, which moved with the rim because I cut each post individually anyway. The pier height is unaffected: I set it off the joist tops and checked it against the deck surface, never against grade (see Designing the pier). The rims that carry the joists span about 38″ between posts, and a 2×8 has roughly half the bending stiffness of a 2×10 of the same width (depth cubed: (7¼ ÷ 9¼)³ ≈ 0.48). The load analysis in Foundation checks the blocks, not the rim, for either size.

The joists are nine 2×8 PT in face-mount hangers, tops flush at +10¾″, clear span 117″. Positions along Y:

2.25 · 12 · 28 · 44 · 60 · 76 · 92 · 108 · 117.75

The 16″ spacings through the middle create the pier bay. The narrower gaps at each end are extra support where the skirtboard wants it.

Deck plan with off-center dome Plan of a 10 by 10 foot deck. Nine joists run across. The 88 inch dome wall ring is centered at 52 by 52 inches rather than the deck middle, leaving 8 inches behind, a 24 inch door apron on one side, and a 22 inch future bay strip on another. Eight CAMO blocks sit at the corners and quarter points of the two long sides. Deck plan: 10′ × 10′, dome off-center door apron future bay 10′-0″ (120″) 52″ to center 10′-0″ (120″) Pier / dome center(52, 52), off-center 24″ door apronstep on, open door, step in 22″ bay stripblocking pre-installed 8 CAMO blocks4 per long side 8″ behind the dome · 88″ ring · 24″ apron · the deck is fully committed

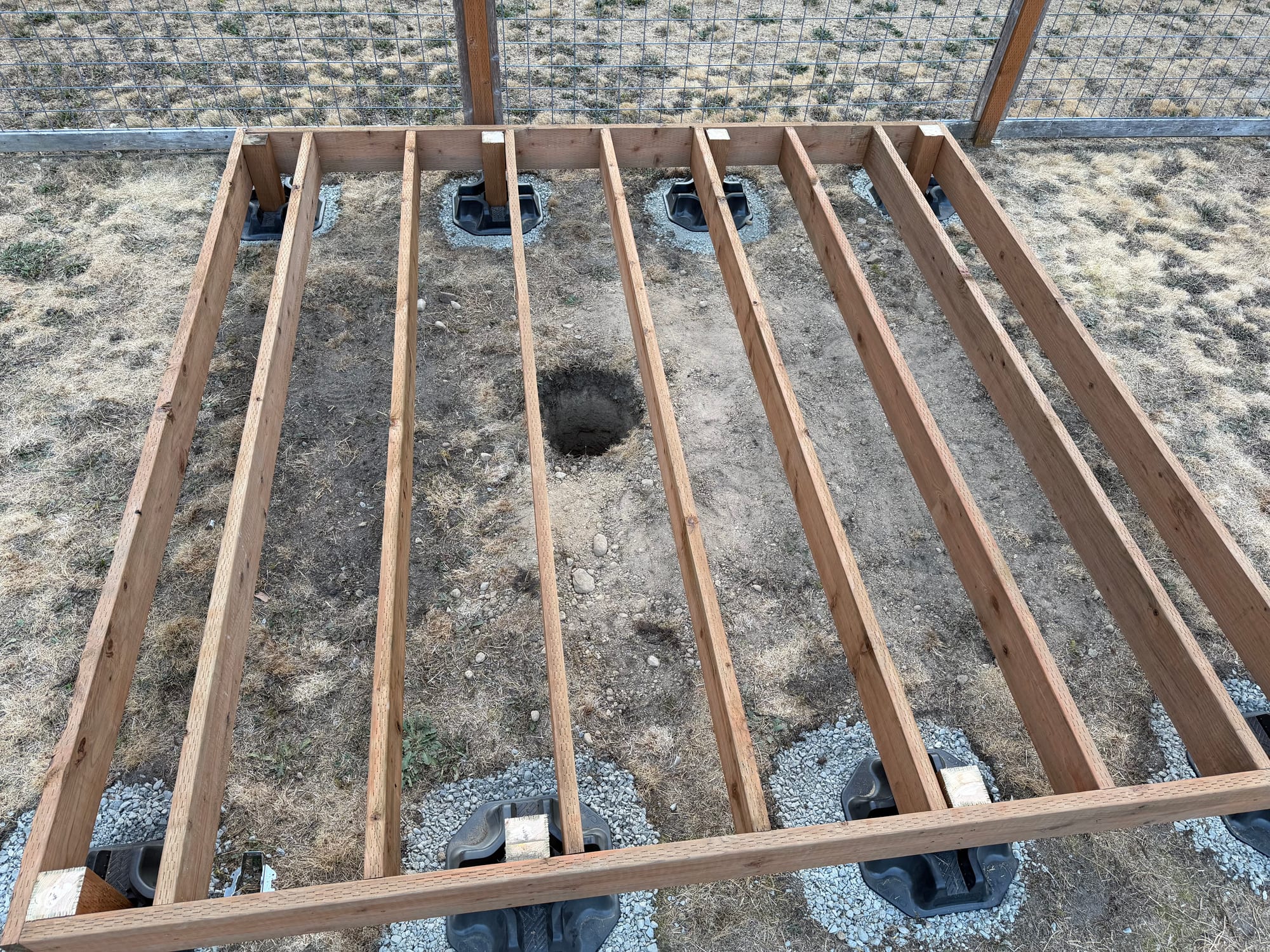

Parallel floor joists inside a rectangular perimeter frame seen from above, with a round hole dug in the soil between two of them and deck blocks under the edges.
The joists hung inside the perimeter, before any blocking, with the pier hole between two of them. A 12″ pier fits between two joists with 1¼″ clear, so no joist gets cut.

The decking is 5/4 × 6 PT running the Y direction, 21 boards at 120″, the middle one ripped to 4⅝″ to fit around the pier. I designed for ⅛″ gaps; as built I set the gaps with a square as the gauge. See Decking.

All hardware is hot-dip galvanized or stainless. Modern PT chemistry destroys electroplated fasteners.

The pier fits between the joists

A 12″ pier fits between two joists at 16″ o.c. with 1¼″ clear all around. No joist gets cut. There are no trimmers or headers, only two pieces of blocking between the joists at Y 44 and Y 60, centered at X 44 and X 60, giving a 14½″ × 14½″ clear opening.

My original plan had a 16″ pier, which needed a fully framed opening with doubled trimmers and headers. Dropping to 12″ removed all of it, the biggest simplification in the build.

Ring blocking must follow the circle

Ten pieces of 2×8, placed where the 88″ wall-ring circle crosses each joist bay, tops flush at +10¾″.

This is easy to get wrong, and I got it wrong on the first pass: I placed the blocking on convenient grid lines, which looked reasonable in a solid view and was obviously useless in a framing plan.

The dome's 250 lb arrives as a line load around an 88″ circle, not spread across the floor, so blocking off that line carries none of it.

Joist bay (Y)X positionsLength
12 – 2821.8 · 82.214.5″
28 – 4411.0 · 93.014.5″
44 – 608.0 · 96.014.5″
60 – 7611.0 · 93.014.5″
76 – 9221.8 · 82.214.5″

Nothing goes in the first or last bay; the circle does not reach that far.

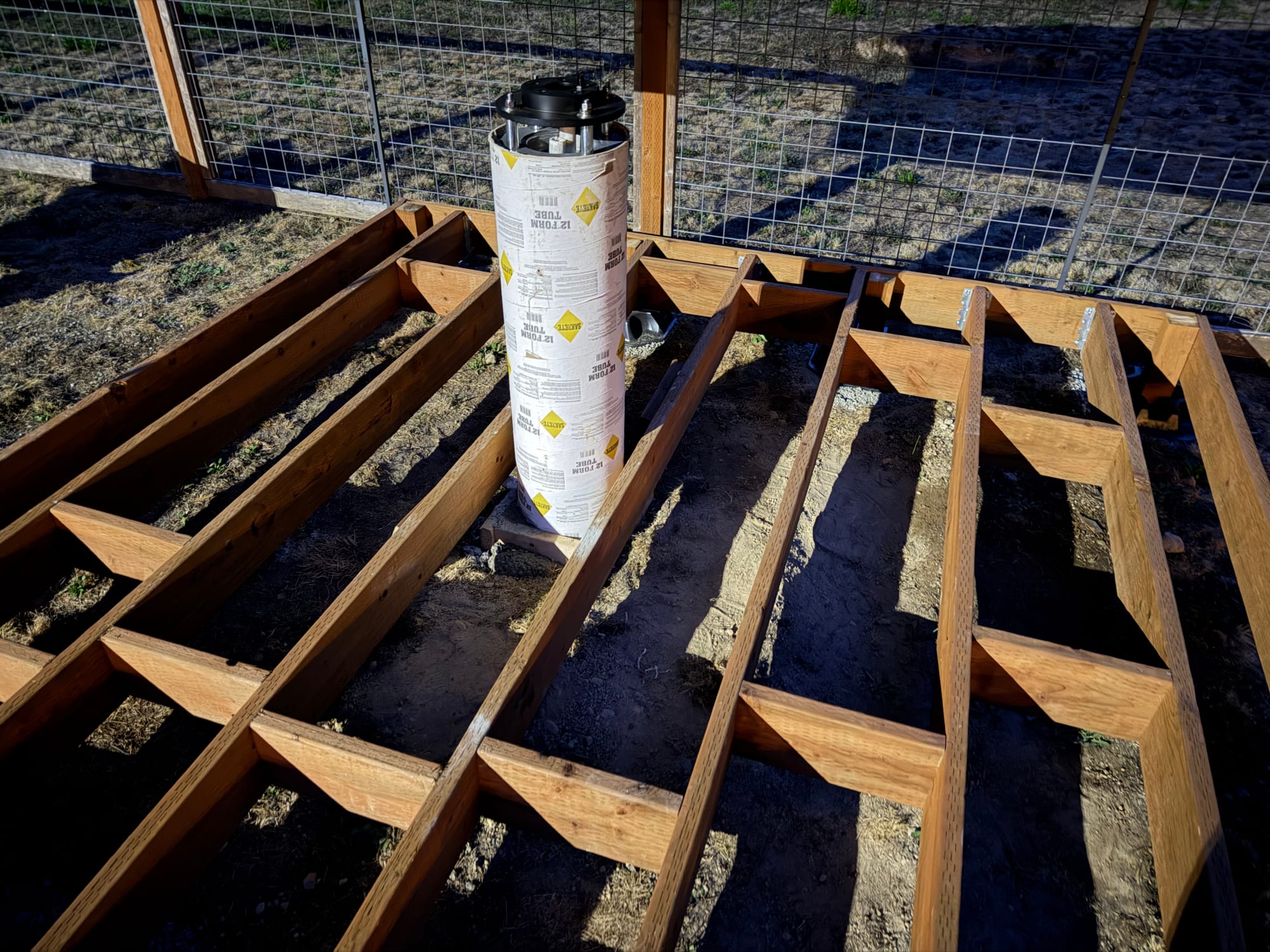

Deck framing with short blocking pieces between the joists at staggered positions, and a cardboard concrete form standing in the pier opening.
Blocking between the joists, stepping from bay to bay rather than running along one grid line. The dome's load arrives as a line around a circle, so that is where the blocking goes.

Bay blocking, installed early

I put four more pieces at X 34 and X 70 in the bay strip, even though the bay is hypothetical. They cost a few offcuts now and would be awkward to retrofit under a finished deck.
