Observatory build · a build log

A backyard observatory, start to finish

Designing and building a 10x10 floating deck and an isolated concrete pier for a NexDome 2.2m observatory in western Washington.

80 min across the overview and 10 chapters, plus 4 reference pages

Read this

This is one person’s build, not engineering guidance. Local codes, soils and loads vary.

This is my build log for a NexDome 2.2m observatory in western Washington: a 10′ × 10′ floating deck, an isolated concrete pier, and a pier adapter made from two brake rotors.

I reversed several decisions partway through, and I have left each reversal in with the reason for it.

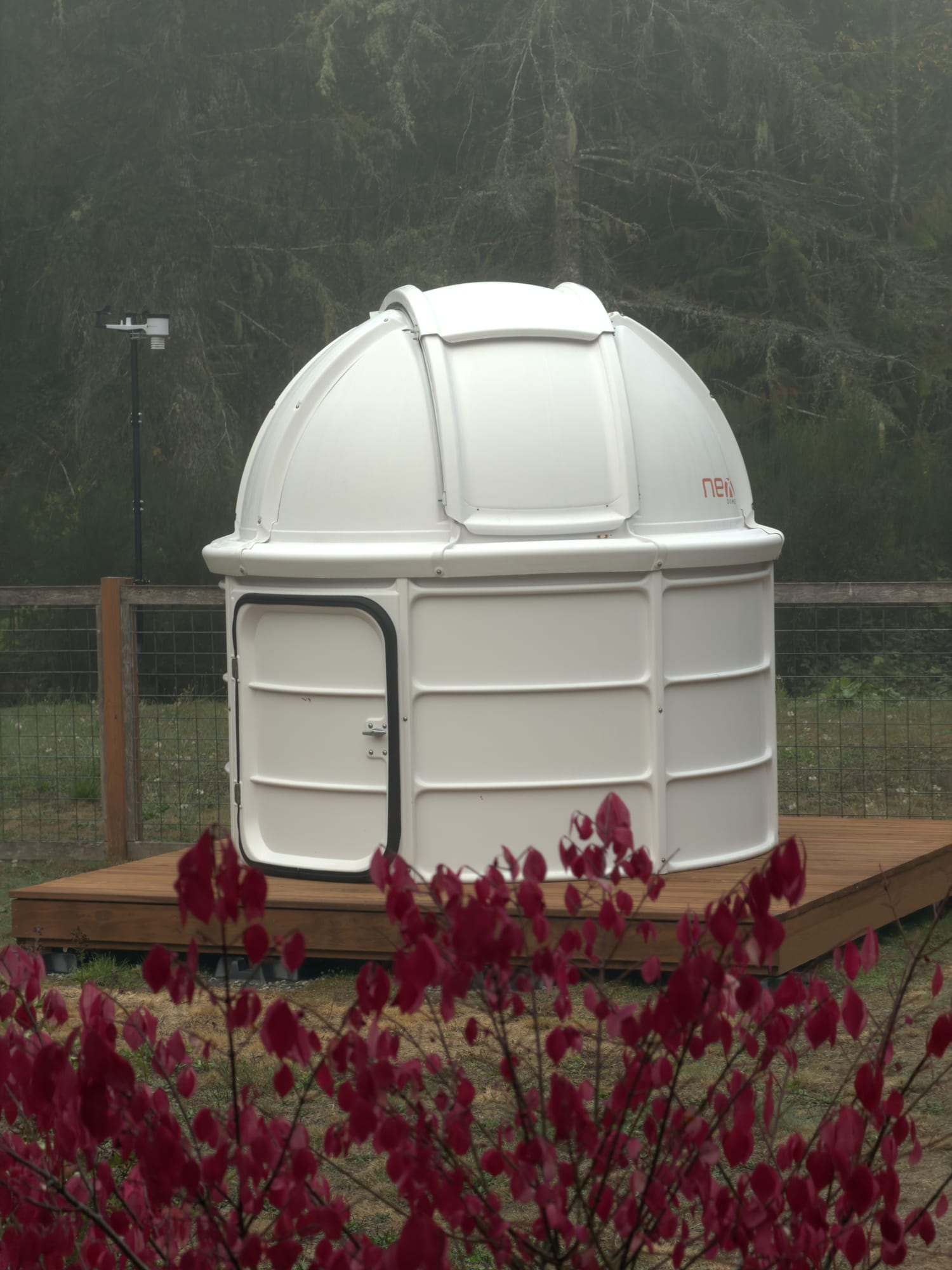

A white ABS observatory dome, door and shutter closed, on a low wooden deck in front of a stand of conifers, with red shrub leaves in the foreground.
The finished observatory: 250 lb of dome on a floating deck, with the telescope on a pier that never touches it.

What I built

The NexDome 2.2m is a 92″ ABS dome on 53″ walls, weighing about 250 lb. It needs a floor, and the telescope inside it needs a foundation that the floor never touches.

Source NexDome, NexDome 2.2m (8') Complete Observatory product page: https://www.nexdome.com/nexdome-2-2m-8-complete-observatory

That last point drives everything else. If the mount shares structure with the deck, every footstep lands in your images. So two separate structures share the same footprint and deliberately never touch:

  • A floating deck on plastic deck blocks, which moves seasonally and carries people, the dome, and eventually a storage bay.
  • A concrete pier on its own footing below frost depth, which carries only the telescope and is expected never to move at all.
Deck plan with off-center dome Plan of a 10 by 10 foot deck. Nine joists run across. The 88 inch dome wall ring is centered at 52 by 52 inches rather than the deck middle, leaving 8 inches behind, a 24 inch door apron on one side, and a 22 inch future bay strip on another. Eight CAMO blocks sit at the corners and quarter points of the two long sides. Deck plan: 10′ × 10′, dome off-center door apron future bay 10′-0″ (120″) 52″ to center 10′-0″ (120″) Pier / dome center(52, 52), off-center 24″ door apronstep on, open door, step in 22″ bay stripblocking pre-installed 8 CAMO blocks4 per long side 8″ behind the dome · 88″ ring · 24″ apron · the deck is fully committed

The chapters

  1. 01Sizing the deck8 minI modeled three footprints before settling on 10x10 with the dome deliberately off-center.
  2. 02Site layout6 minSquaring a 10-foot square with a scaled 3-4-5 triangle, and finding true north with a stick instead of a phone.
  3. 03Foundation6 minPlastic deck blocks instead of concrete, and the load calculation that set the count at eight.
  4. 04Framing7 minSkirtboard on posts, joists in hangers with no ledger, and blocking that has to follow a circle rather than a grid.
  5. 05Designing the pier9 minDepth, diameter, rebar and conduit, plus the NexDome height formula and why the local treeline changed the answer.
  6. 06The pier adapter10 minTwo brake rotors on four rods, and the stiffness analysis that showed my first design was flexing more than the whole concrete pier.
  7. 07Pouring the pier8 minThe sequence that moves the fussy work off the clock, and the half hour that cannot be undone.
  8. 08Decking6 minBoard count, crown and cup, the right screw after three wrong ones, and what the deck edge ended up as.
  9. 09Dome assembly6 minMaking a seven-post ring round when the pier is not a precision surface, and letting the dome itself do the final check.
  10. 10What went wrong9 minMy mistakes and reversals, including a rod I twisted in green concrete.

Site conditions

Low elevation, marine climate. From the county's published residential design criteria:

  • Frost depth: 12″. I took the pier to 36″ anyway; chapter 5 explains why.
  • Soil bearing: 1,500 psf assumed absent a geotechnical report.
  • Ground snow: 30 psf. Wind: 110 mph ultimate, Exposure B.

Source County residential design criteria, rev. 2024-03-26: https://www.piercecountywa.gov/DocumentCenter/View/4405/Bulletin-Residential-Design-Criteria

Wet winters, and a treeline that blocks the horizon to 10–15° in most directions. The treeline ended up setting the pier height.

Disclaimer

This is a record of my build and should not be read as engineering guidance. The loads, clearances and soil assumptions are specific to this site. Codes, soils and snow loads vary. I never resolved two questions in this guide; each is flagged where it appears.

The 3D model

The deck, pier and dome generated from the build spec, as designed and as built. Take it apart layer by layer in the browser, or download it. Where the spec has no figure for a part, the model marks it approximate.

Reference

The numbers without the narrative: what to buy, what to cut, every formula, and the checklist for pour day.

Still open

The manufacturer never answered two of my questions. I have left them open on purpose, and they are flagged again in the chapters where they matter.
